Array Networks AVX10650
Multi-Tenant Application Delivery Controller

Features:

Guaranteed SSL Performance In a Shared Environment

Performing compute-intensive SSL encryption on virtualized servers is inefficient. Array's purpose-built virtualized appliances excel at this crucial network function – shrinking the data center footprint for app delivery by up to 16x versus dedicated ADC appliances and providing the lowest possible cost per SSL transaction per second (TPS).

---

Product Description

Dedicated Multi-Tenant Resources

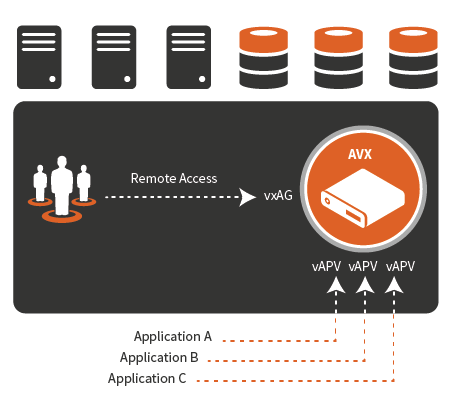

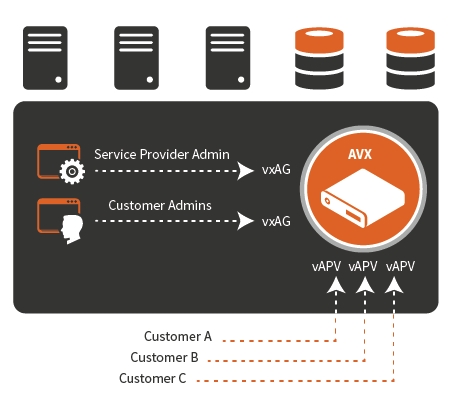

The AVX10650 features eight fully independent ADC instances capable of supporting their own Array operating system and powered by dedicated physical resources such as I/O, CPU, memory and SSL. As a result, the AVX10650 offers the equivalent of of eight separate 1RU ADC units in just 2RU, where customers and workloads can be assured of guaranteed, measurable performance. Each instance is separately programmable and centrally manageable, allowing the utmost in flexibility and control. Through dedicated hardware and software resources, IaaS operators and enterprises gain a true multi-tenant ADC appliance.

Server Load Balancing
APV Series application delivery controllers ensure 99.999% availability for cloud services and enterprise applications. Leveraging robust distribution algorithms, health check mechanisms, clustering and failover capabilities, the AVX10650 appliance maintains connections, ensures persistence, directs traffic away from failed servers and intelligently distributes application services across multiple servers for optimized performance and availability.

Layer-7 Policy Engine
Customized traffic management is often a trade-off between performance, control and ease-of-use. Unlike ADCs that rely on complex, computeintensive scripting to enable custom Layer-7 policies, Array supports a vast library of policies that are hard-coded at the kernel level, are configurable with point-and-click simplicity via the WebUI or CLI and can be combined and nested to create advanced customized application traffic management. With Array's unique approach to Layer-7 traffic management, customers get the best of all worlds: ease-of-use, granular control and superior performance and scalability.

2048-Bit SSL Acceleration
SSL acceleration reduces the number of servers required for secure applications, improves server efficiency and dramatically improves application performance.

Offloading compute-intensive key exchange and bulk encryption, and delivering industry-leading client-certificate performance, SSL acceleration is ideal for scaling secure SaaS services, e-commerce environments and business-critical applications requiring high-volume secure connectivity.

Although more secure than the old 1024-bit standard, 2048-bit keys are five times more compute intensive and can impact both performance and the cost of supporting applications. Array 2048 and 4096-bit SSL encryption offers unbeatable scalability and performance with the lowest-cost per SSL TPS to offset transition costs and improve security without impacting performance.

WebWall Web Application Security
With WebWall™, Array's suite of Web application security capabilities, the AVX10650 application delivery controller can protect against denial of service (DoS) and malformed URL attacks and allow a wide range of Layer 2 through Layer 7 protective policies to be stacked atop one another for increased security.

AVX10650 is security-hardened to protect applications and servers from L4 and L7 DDoS attacks and support content filtering to guard against Syn-flood, tear drop, ping-of-death, Nimda, Smurf and other malicious attacks. AVX10650 also features extensive access control lists, network address translation and stateful packet flow inspection – all executed at the kernel level – to guard against attacks and unauthorized access without impacting performance or scalability.

In addition, integrated Web application firewall capabilities provide deep application data inspection – beyond IP and TCP headers – to deal with attacks such as SQL injection and cross-site scripting. Deployable in front of multiple Web or application servers, Array's Web application firewall detects and responds to signatures for known application vulnerabilities and is programmable to deal with future threats.

Link Load Balancing & GSLB
Link load balancing (LLB) and global server load balancing (GSLB) ensure 99.999% availability for wide area network (WAN) connections and geographically dispersed sites. Link load balancing with end-to-end health monitoring and dynamic routing detects outages and monitors performance in real time to distribute traffic across multiple WAN connections for a premium, always-on end-user experience. Ideal for geographically distributed applications and multi-site architectures, global server load balancing directs traffic away from failed data centers and intelligently distributes services between sites based on proximity, language, capacity, load and response times for maximum performance and availability.

Application Acceleration
APV Series appliances leverage multiple acceleration technologies and optimizations to deliver a premium end-user experience for a wide range of applications and data services. Inmemory caching increases server efficiency and improves seek and response times by over 500%, hardware and software compression can reduce bandwidth utilization and end-user response times by more than half and TCP connection multiplexing aggregates millions of short-lived client connections into persistent fast lanes that increase server efficiency by up to 70% while improving application performance.

ePolicy L7 Application Scripting
Where Array's Layer-7 policy engine cannot meet application traffic management requirements, ePolicy scripting allows transactions and content to be manipulated to achieve traffic distribution that improves data center efficiency and mitigates the effect of delivering applications over the Internet.

eRoute L4 Routing
Using eRoute, inbound and outbound WAN traffic may be load balanced across multiple ISP links based on preset and user-defined algorithms and directed across routes optimized for maximum stability and performance. Additional L4 traffic management features include VLANs, port forwarding, port and link redundancy and the ability to bundle multiple low-cost links to improve bandwidth utilization and reduce costs.

Application-Specific Certifications
In conjunction with ISVs and application developer partners, AVX10650 has been certified to provide load balancing, acceleration and security for enterprise applications such as Microsoft Lync 2010, Microsoft Exchange 2010 and 2013, SAP, Oracle, eClinicalWorks and others. Leveraging deployment guides, businesses can take the guesswork out of application delivery. Following simple step-by-step instructions, IT can rapidly and confidently configure the AVX10650 application delivery controller for optimized delivery of business critical applications.

Traffic Shaping & QoS
Traffic shaping optimizes application traffic on WAN links to improve bandwidth utilization and end-user response times. Supporting user-defined policies, AVX10650 prevents bandwidth-intensive applications from over-utilizing WAN links and ensures essential applications are prioritized to meet service level agreements. Used in conjunction with link load balancing, global server load balancing and QoS features such as filters and CBQs, traffic shaping can dramatically improve application performance.

IPv6 Support
For organizations needing an IPv6 Web presence, server load balancing protocol translation (SLBPT) transforms existing IPv4 Web sites into IPv6 compatible sites and greatly reduces the need for duplicate equipment, content and management. Where there is a need to make the most of depleted IPv4 resources, NAT and dual NAT (dual-stack IPv6) allow multiple clients to utilize a single IPv4 address. In migration environments, Array IPv6 solutions support both NAT64 and DNS64 to enable IPv6 clients to connect with IPv4 servers and content. To ensure a consistent application experience across IPv4 and IPv6 clients and networks – and to enable fully-capable, next-generation solutions – IPv6 feature parity is supported for all Array APV Series and AVX10650 application delivery controllers.

Management & Integration
AVX10650 application delivery controllers are simple to install and offer intuitive configuration and management via a WebUI and a familiar command line interface. Using the administration tool kit, network managers can view the status for a wide range of system parameters, enable services on the fly and automate configuration using XMLRPC. Leveraging extensible APIs, application and network intelligence can be integrated with thirdparty monitoring and management or exported for optimizing complementary data center systems. In addition, AVX Series appliances support VMware vCenter Orchestrator and Microsoft System Center integration for intelligent command and control of virtualized application infrastructure.

eCloud API & OpenStack Integration

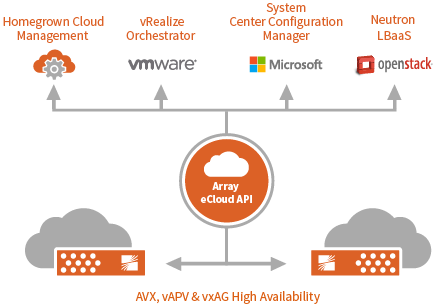

To meet the deployment and management requirements of load balancing and application delivery in the cloud, Array's eCloud API provides a script-level interface for cloud management systems to manage and monitor Array devices and assist in interactions between cloud operating systems and virtual machines running Array load balancing. For cloud providers and enterprises leveraging the OpenStack architecture for cloud management and automation, Array's integration with OpenStack load balancing-as-a-service (LBaaS) creates a standardized means to rapidly integrate with and control Array technology.

Product Edition
AVX10650 hardware appliances support the AppVelocity-S product edition, which combines SSL acceleration with server load balancing and application acceleration to create a traffic management solution ideal for SaaS, ecommerce environments and applications requiring a highdegree of secure connectivity. The AppVelocity-S product edition includes link load balancing and supports global server load balancing as an option.

Product Features
Availability
Layer 2-7 Policy & Group Management	Multi-level virtual service policy routing – Static, default and backup policies and groups – Layer 2-7 application routing policies – Layer 2-7 server persistence – Application load balancing based on round robin, weighted round robin, least connections, shortest response and SNMP
Layer 2-3 Load Balancing	IP/MAC based load balancing for any IP protocol – Round robin, persistent IP and return to sender – Firewall, IPS/ IDS, anti-spam, anti-virus and composite applications
Layer 4 Load Balancing	TCP, TCPS and UDP protocols – Round robin, weighted round robin, least connections and shortest response – Persistent IP, hash IP, consistent hash IP, persistent IP + port and port range – All single port TCP applications, RADIUS and DNS server support – Composite IP application support
Layer 7 Load Balancing	HTTP/HTTPS, FTP/FTPS, SIP, RTSP and RDP – L7 content switching (QoS network and client port - SSL and SIP session ID - HTTP URL, host name, cookie and any header - hash header, cookie and query) – URL redirect and HTTP request/response rewrite – HTTP request filter
Server Persistence	Source + destination IP, Client IP, SSLID, HTTP header, URL, cookie, application – Individual session control
Content Routing & Switching	One arm, configurable reverse or transparent proxy mode per VIP – Configurable reverse or transparent proxy mode, triangle mode – Nested L7 and L4 policies – Combine L7 and L4 policies
Global Server Load Balancing	Application availability from multiple locations worldwide – DNS DoS protection – Global site/service selection – Proximity and IP persistence – Load balancing between multi-site SSL VPN deployments
Link Load Balancing	Outbound: round robin, weighted round robin, shortest response time, target proximity/dynamic detection – Inbound: round robin, weighted round robin, target proximity/dynamic detection – Integrated DNS
ePolicy L7 Application Scripting	Customize SLB policies and collaborate with SLB methods to realize load balancing among real services – Analyze packet contents of HTTP, simple object access protocol (SOAP), extensible markup language (XML) and diameter protocols – Receive, send, analyze, and discard generic TCP and TCPS packets – Perform pattern matching for text data – Control TCP connections – Monitor and take statistics of traffic
eRoute L4 Routing	Policy-based routing based on port, source/destination IP, UDP protocols, TCP – RIPv1, RIPv2 and OSPF support – Return to sender (RTS)/IP flow persistence – Port forwarding, link aggregation and port redundancy – Transparent to VPN remote access
Application, Server & Link Health Checks	ARP, ICMP, TCP, HTTP/HTTPS, DNS, Radius, RTSP, SIP single port/protocol health checks – Multi-port health checks – Health checks by protocol and content verification – Link health checks based on physical port, ICMP and user-defined L4 – Next gateway health checks, destination path health checks – Ensure availability and performance of applications over WAN links from a single point of management – Scriptable customer-defined composite health checks
Clustering	Up to 32 nodes – Active/active, active/standby – Configuration synchronization – Application-specific VIP health checks – Stateful TCP failover – Fast failover via USB ports – Automatic ISP failover
Single System Image	Create a single VIP (single ADC instance) out of any number of dedicated, multi-tenant or virtual APV appliances – Enable ultimate flexibility in scaling out
IPv6	Full IPv6 support – DNS64 & NAT64 – Dual Stack Lite – IPv6 to IPv4 and IPv4 to IPv6 NAT and full IPv6 addressing – IPv6 ready gold certified
Networking	Link aggregation, VLAN/MNET, NTP – Static and port-based NAT, advanced NAT for transparent use of multiple WAN links
Acceleration
Application Performance	Dynamic detect – Client connection persistence – Connection multiplexing – TCP buffering – IEEE 802.3ad link aggregation
SSL Acceleration (2048 & 4096-bit)	Hardware SSL processing – SSLv3 and TLSv1 – 4096-bit maximum cipher key size (RSA) – End-to-end security (Server-side SSL communication) – SSL session reuse and timeout control – Cipher strength reduction – Customizable cipher suite order – Customizable SSL error pages – Sharable to multiple SLB services – SSL self- check
Compression	Hardware accelerated – Virtualized compression – Inline HTTP processing – Compresses HTML, XML, Java scripts and CSS – Compresses Microsoft file formats (DOC, XLS, PPT) and PDF
Caching	Virtualized, memory-based cache – HTTP 1.1 compliant, policy-based cache
Traffic Shaping	Guarantees application performance – Rate shaping for setting user-defined rate limits on critical applications – QoS for traffic prioritization – Supports CBQs and borrow and unborrow bandwidth from queues – Advanced ACL (SLB QoS) – Supports QoS filters based on ports and protocols including TCP, UDP and ICMP
Security
WebWall Web Application Security	Hardened OS – Secure access only, access control based on client certificate information and access method – Customer configurable SSL/TLS version, cipher suite and minimum cipher strength – Tamper-proof key and certificate protection – WebWall stateful packet-inspection firewall – Over 1000 ACL rules without performance degradation – Proxy-based firewall – TCP syn-flood protection – Flash and surge event protection – DoS protection – HTTP access method control – URL filtering – HTTP/DNS cache for mitigating DDoS – Web Application Firewall – Deep application data inspection for dealing with attacks such as SQL injection and cross-site scripting – Detects and responds to known application vulnerabilities – Programmable to deal with future threats
DDoS Protection (SLB)	Protocol Attacks: SSL invalid packet, SSL handshake attack, HTTP invalid packet attack – Application Attacks: HTTP slow attack, HTTP flood attack, bandwidth consumption attack – DDoS attack logging
Client-Server Certificate Management	CSR and private key generation – Self-signed certificate support – Import certificate and private key – Import certificate format – Extensive certificate support – Certificate backup and restore – Wildcard certificate support
Client Certificate Authentication & Authorization	Turbo client certificate verification – Root and intermediate CA import – Basic client certificate verification – Certificate chain support – Certificate revocation list (HTTP, FTP, LDAP) – Online certificate status protocol (OCSP, HTTP/HTTPS) – Certificate-based access control – Inside SSL server, two-way certificates
Client Certificate Application Integration	Parse client certificate field information with different language/encoding – Pass individual field/group and field/ customer format to back-end applications – HTTP header, URL and cookie – Integrated with proxy rewrite – Detailed SSL statistics
Management
System	Centralized cluster management – Secure CLI, WebUI and SSH remote management – XML-RPC for integration with 3rd party management and monitoring – SNMP V2/V3 and private MIBs – Syslog (UDP or TCP) – Administrator and operator account management – E-mail, paging and alerting capability – Multiple configuration files and unit configuration synchronization – Online troubleshooting – Realtime monitoring – Role-based administration control
eCloud API	Interface for cloud management systems to control and monitor hardware and virtual APV appliances – Assists interaction between components such as virtual machines in CloudOS environments – Remote management of interaction between components such as virtual machines in CloudOS environments – Remote management of APV appliances – Notification of events on APV appliances – eCloud demo integrated on APV appliance – APV appliances – Notification of events on APV appliances – eCloud demo integrated on APV appliance – Supports integration with OpenStack Load Balancing-as-a-Service (LBaaS) standard Supports integration with OpenStack Load Balancing-as-a-Service (LBaaS) standard

Specifications:

Array Multi-Tenant ADC Architecture

vAPV Specifications
			AVX7600			AVX10650
	Entry	Small	Medium	Large	Entry	Small	Medium	Large
Instances per System	16	8	4	2	32	16	8	4
Connections per Second	75K	150K	225K	400K	75K	150K	225K	400K
Concurrent Connections	1M	2M	4M	8M	1M	2M	4M	8M
Throughput	4 Gbps	8 Gbps	16 Gbps	32 Gbps	4 Gbps	8 Gbps	16 Gbps	32 Gbps
SSL Transactions per Second	2K	4K	8K	16K	2K	4K	8K	16K
SSL Concurrent Connections	100K	200K	500K	1M	100K	200K	500K	1M
SSL Throughput	1 Gbps	2.5 Gbps	5 Gbps	10 Gbps	1 Gbps	2.5 Gbps	5 Gbps	10 Gbps

vxAG Specifications
	AVX7600				AVX10650
Instances per System	16	8	4	2	32	16	8	4
SSL Transactions per Second	2K	4K	8K	16K	2K	4K	8K	16K
SSL Concurrent Connections	600	10K	25K	128K	600	10K	25K	128K
SSL Throughput	600 Mbps	1 Gbps	2 Gbps	3 Gbps	600 Mbps	1 Gbps	2 Gbps	3 Gbps

Products Compare:

Array Application Delivery Architecture

	AppVelocity		AppVelocity-S
	APV 1600/1600T APV 2600 APV 3600 APV 3650	APV 5600 APV 6600 APV 10600 APV 10650	APV 1600/1600T APV 2600 APV 3600 APV 3650	APV 5600 APV 6600 APV 10600 APV 10650 APX 10650
L2, L4 & L7 SLB	Standard	Standard	Standard	Standard
LLB	Standard	Standard	Standard	Standard
GSLB	Optional	Optional	Optional	Optional
L7 Policy Engine	Standard	Standard	Standard	Standard
ePolicy Scripting	Standard	Standard	Standard	Standard
eRoute Routing	Standard	Standard	Standard	Standard
Transparent Proxy	Standard	Standard	Standard	Standard
SSL (SW)	Standard	Standard	N/A	N/A
SSL (HW)	N/A	N/A	Standard	Standard
Compression (SW)	Standard	Standard	Standard	Standard
Compression (HW)		Optional		Optional
RAM Caching	Standard	Standard	Standard	Standard
Traffic Shaping	Standard	Standard	Standard	Standard
Web Application Security (Including WAF)	Standard	Standard	Standard	Standard
IPv6 Support	Standard	Standard	Standard	Standard
Multi-language WebUI	Standard	Standard	Standard	Standard
Single System Image	Standard	Standard	Standard	Standard
Fast Failover	Standard	Standard	Standard	Standard
Clustering	Standard	Standard	Standard	Standard
eCloud API & LBaaS Integration	Standard	Standard	Standard	Standard

	APV1600	APV1600T	APV2600	APV3600	APV3650
Max. L4 Throughput	2 Gbps	2.5 Gbps	10 Gbps	20 Gbps	30 Gbps
Max. SSL TPS (2048)	1K	1.5K	5K	25K	25K
Max. SSL Throughput	700 Mbps	1 Gbps	3 Gbps	10 Gbps	10 Gbps
1 GbE Copper	Standard	Standard	Standard	Standard	Standard
1 GbE Fiber			Standard	Standard	Standard
10 GbE Fiber			Standard	Standard	Standard
Power Supply	Single Power: 90-264VAC, 6-3A, 47-63Hz		Single Power: 90-264VAC, 6-3A, 47-63Hz Dual Power: 90-264VAC, 8-4A, 47-63Hz	Dual Power: 100-240VAC, 8-4A, 47-63Hz
Dimensions	Single Power: 1U – 17" W x 15" D x 1.75" H		Single Power: 1U – 17" W x 15" D x 1.75" H Dual Power: 1U – 17" W x 19.875" D x 1.75" H	Dual Power: 1U – 17" W x 19.875" D x 1.75" H
Weight	Single Power: 13.6 lbs.		Single Power: 13.6 lbs. Dual Power: 17.2 lbs.	Dual Power: 19.8 lbs.
Environmental	Operating Temperature: 0° to 45°C, Humidity: 0% to 90%, Non condensing
Regulatory Compliance	ICES-003, EN 55024, CISPR 22, AS/NZS 3548, FCC, 47FR part 15 Class A, VCCI-A
Safety	CSA, C/US, CE, IEC 60950-1, CSA 60950-1, EN 60950-1
Support	Gold, Silver and Bronze Level Support Plans
Warranty	1 Year Hardware, 90 Days Software Supported
	APV5600	APV6600	APV10600	APV10650	APX10650
Max. L4 Throughput	15 Gbps	35 Gbps	80 Gbps	120 Gbps	7 Gbps
Max. SSL TPS (2048)	1K	1.5K	5K	25K	8.5K
Max. SSL Throughput	700 Mbps	1 Gbps	3 Gbps	10 Gbps	4 Gbps
1 GbE Copper	Standard	Standard
1 GbE Fiber	Standard	Standard
10 GbE Fiber	Standard	Standard	Standard	Standard	Standard
Power Supply	Dual Power: 90-264VAC,10-5A, 47-63 Hz
Dimensions	Dual Power: 2U – 17" W x 22.5" D x 3.5" H
Weight	Dual Power: 28 lbs.
Environmental	Operating Temperature: 0° to 45°C, Humidity: 0% to 90%, Non condensing
Regulatory Compliance	ICES-003, EN 55024, CISPR 22, AS/NZS 3548, FCC, 47FR part 15 Class A, VCCI-A
Safety	CSA, C/US, CE, IEC 60950-1, CSA 60950-1, EN 60950-1
Support	Gold, Silver and Bronze Level Support Plans
Warranty	1 Year Hardware, 90 Days Software Supported
	Supported Hypervisors (64-bit only)			Virtual Machine Requirements
vAPV With the exception of hardware SSL acceleration, vAPV virtual application delivery controllers support all APV features.	VMware ESXi 4.1 or Later XenServer 5.6 or Later OpenXen 4.0 or Later KVM 1.1.1-1.8.1 or later Hyper-V (Windows Server 2012)			2 Virtual CPUs 4 Virtual Network Adapters 2GB RAM 40GB Disk

Documentation:

Download the Array Networks Virtualized Appliances Datasheet (PDF).
