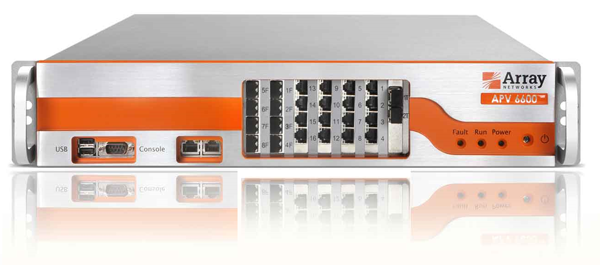

Array Networks APV6600/6600FIPS
Application Delivery Controllers

APV6600

Array Products
Array Networks APV 6600 Series
APV 6600 AppVelocity Dual Power Supplies ADC (SLB, LLB, 16x1GbE copper ports, 2x10GbE SFP+ ports, 2U)
#AW960040
Our Price: $59,995.00
Call For Lowest Price!
APV 6600 AppVelocity-S Dual Power Supplies ADC (SLB, LLB, 16x1GbE copper ports, 2x10GbE SFP+ ports, 80,000 SSL TPS 1K Keys or 25,000 SSL TPS 2K Keys, 2U)
#AW960041
Our Price: $78,995.00
Call For Lowest Price!
APV 6600 AppVelocity Dual Power Supplies ADC (SLB, LLB, 16x1GbE copper ports, 4x1GbE SFP ports (SX Fiber incl.), 2x10GbE SFP+ ports, 2U)
#AW960042
Our Price: $62,995.00
Call For Lowest Price!
APV 6600 AppVelocity-S Dual Power Supplies ADC (SLB, LLB,, 16x1GbE copper ports, 4x1GbE SFP ports (SX Fiber incl.), 2x10GbE SFP+ ports, 80,000 SSL TPS 1K Keys or 25,000 SSL TPS 2K Keys, 2U)
#AW960043
Our Price: $81,995.00
Call For Lowest Price!
APV 6600 AppVelocity Dual Power Supplies ADC (SLB, LLB, 16x1GbE copper ports, 4x10GbE SFP+ ports, 2U)
#AW960044
Our Price: $64,995.00
Call For Lowest Price!
APV 6600 AppVelocity-S Dual Power Supplies ADC (SLB, LLB, 16x1GbE copper ports, 4x10GbE SFP+ ports, 80,000 SSL TPS 1K Keys or 25,000 SSL TPS 2K Keys, 2U)
#AW960045
Our Price: $83,995.00
Call For Lowest Price!
APV 6600 AppVelocity-S Dual Power Supplies ADC (SLB, LLB, 8x1GbE copper ports, 4x10GbE SFP+ ports, 25,000 SSL TPS 2K Keys, 2U)
#AW960046
Our Price: $79,995.00
Call For Lowest Price!
Array Networks APV 6600 FIPS Series
APV 6600 AppVelocity-FIPS Dual Power Supplies ADC (SLB, LLB, 8x1GbE copper ports, 2x10GbE SFP+ ports, 9,000 SSL TPS 2K Keys, 2U)
#AW960049
Our Price: $105,995.00
Call For Lowest Price!
APV 6600 AppVelocity-FIPS Dual Power Supplies ADC (SLB, LLB,, 8x1GbE copper ports, 4x10GbE SFP+ ports, 9,000 SSL TPS 2K Keys, 2U)
#AW960048
Our Price: $110,995.00
Call For Lowest Price!

Click here to jump to more pricing!

Overview:

The APV6600/6600 FIPS series are 35Gbps appliances that support high-performance load balancing, advanced traffic management, application acceleration, Web application security and N+1 clustering along with 16 GigE ports and cutting-edge hardware accelerated SSL encryption and compression.

APV Hardware Appliances

Enterprise app icon

Enterprise Applications

Array load balancers provide high availability for a broad range of enterprise applications including Microsoft Exchange, SharePoint and Lync, Oracle PeopleSoft and WebLogic, VMware View, SAP NetWeaver, eClinicalWorks and many more. Array APV Series appliances are also ideal for Intranet applications as well as homegrown enterprise applications and services.

SaaS icon

Software-as-a-Service

Array load balancers are simple, yet powerful and scalable, yet cost-effective, making them the perfect choice for supporting secure software-as-a-service (SaaS) cloud offerings. For businesses with a laser focus on scaling a single external-facing cloud application, Array’s offers distinct advantages for Layer-7 traffic management and SSL price-performance.

IaaS icon

Infrastructure-as-a-Service

Flexible physical, virtual and virtualized platform options, integration with homegrown and 3rd party cloud orchestration – including OpenStack, VMware and Microsoft – and support for subscription and pay-as-you-go licensing make Array application delivery a natural fit for infrastructure-as-a-service (IaaS) providers looking to offer load balancing as a cloud service.

SSL Offload icon

SSL Offloading

Whether you need to offload SSL from servers to ensure the performance and scalability of business-critical applications and services, or offload SSL from virtual ADCs, or provide a scalable means to intercept and inspect encrypted traffic, Array provides the highest-performance, most feature-rich and secure SSL acceleration and offload solution on the market.

APV Software Modules

AppVelocity

Availability

AppVelocity is Array’s core ADC feature set included with every APV Series physical appliance and vAPV virtual appliance; server load balancing and link load balancing ensure application uptime in the event that servers or ISP links become overburdened or unresponsive.

Performance

Connection multiplexing, dynamic caching, adaptive compression and traffic shaping optimize and accelerate Web and application performance while significantly improving the efficiency of network connections and back end servers.

Security

A security hardened operating system, purpose-built reverse proxy architecture, kernel-level ACLs, packet filtering, DDoS protection and WebWall application security suite, provide a first line of defense and ensure security for business-critical applications.

Control

Ensure persistence, create Layer-7 content switching rules that direct application traffic to specific servers, and manipulate HTTP headers to enhance application functionality without the need for additional application development.

Management & Orchestration

Use Array’s eCloud™ RESTful API to enable orchestration of app delivery functions from cloud and virtualization management platforms including VMware vRealize Orchestrator, Microsoft System Center Configuration Manager and OpenStack Neutron LBaaS.

AppVelocity-S & GSLB

AppVelocity-S

Available for Array’s APV Series physical appliances, AppVelocity-S includes all of the capabilities in AppVelocity’s core ADC feature set and adds hardware-accelerated SSL encryption and a purpose-built SSL stack.

Designed for superior security and performance, AppVelocity-S has proven immune to vulnerabilities such as Heartbleed, ShellShock and Man-in-the-Middle and is Array’s go-to solution for supporting HTTPS-encrypted Web sites and applications.

Global Sever Load Balancing (GSLB)

Global server load balancing (GSLB) directs traffic to alternate or better-performing sites to ensure application uptime and optimal response times in the event that either network segments or data centers become overburdened or unresponsive.

In addition, GSLB may be used to equalize traffic loads across geographically dispersed sites and route requests based on proximity to optimize application performance.

Features:

Availability, Performance & Security

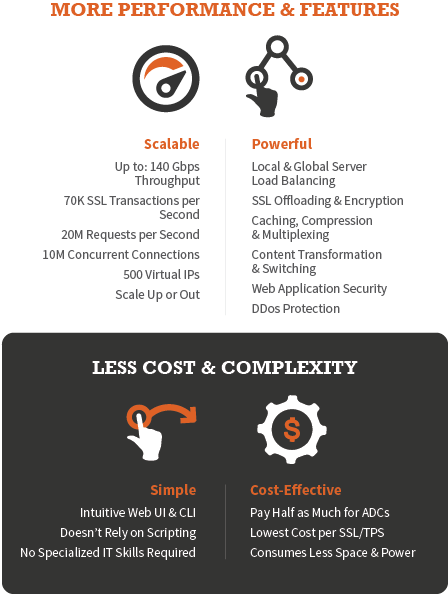

APV infographic

APV Series physical and virtual appliances are deployed in front of Web and application servers to distribute traffic, scale server pools, maintain persistence and accelerate applications. In addition, Array ADCs act as both a strategic point of control and a first line of defense for business-critical applications and services.

Array application delivery controllers are ideal for ensuring availability, performance and security for internal users on private networks, as well as end-users accessing Web-based applications and cloud services over the Internet.

Each Array ADC shares an all-inclusive feature set for simple, cost-effective ordering, and is available with your choice of software or hardware SSL acceleration.

Highlights & Benefits


  • Integrated Layer-4 and Layer-7 server load balancers, link load balancers, global server load balancers, connection multiplexing, SSL acceleration, caching, compression, traffic shaping, IPv6 and Web application security
  • High-performance, kernel-level Layer-7 policy engine for enabling customizable application traffic management without impacting performance or scalability
  • 2048-bit SSL with advanced client certificate handing for secure application support and easy application integration
  • Multi-level security including a hardened OS, reverse-proxy architecture and kernel-level Web firewall for guarding applications without impacting performance
  • Delivers 99.999% application availability, up to 5x application acceleration and provides a first line of defense for Web-enabled applications and cloud services
  • Offloads Web and application servers for increased efficiency, capacity and return on investment (ROI)
  • Intelligently load balances traffic across optimal WAN links to reduce costs and improve the performance of business critical applications
  • Application-specific certifications, guides and policies for rapid deployment and accelerated delivery of business critical enterprise applications
  • ePolicy™ L7 application scripting and eRoute™ L4 routing for custom control of application traffic
  • IPv6 gold certified for IPv4 preservation, IPv4/6 translation and IPv6 migration
  • OpenStack load balancing-as-a-service (LBaaS) integration, Array eCloud™ SOAP API and XML-RPC for seamless interaction with cloud management systems and 3rd party monitoring solutions
  • Extensible SOAP API for ease of integration with VMware vCenter Orchestrator and Microsoft System Center
  • N+1 clustering for up to 32 hardware or virtual instances, single system image and stateful TCP failover for industry-leading availability and scalability
  • Familiar CLI, intuitive WebUI and centralized management for ease of use and configuration

Product Description

Server Load Balancing
APV Series application delivery controllers ensure 99.999% uptime for applications and services. Leveraging robust distribution algorithms, health check mechanisms, clustering and failover capabilities, APV Series appliances maintain connections, ensure persistence, direct traffic away from failed servers and intelligently distribute application services across multiple servers for optimized performance and availability.

Layer-7 Policy Engine
Customized traffic management is often a trade-off between performance, control and ease-of-use. Unlike ADCs that rely on complex, computeintensive scripting to enable custom Layer-7 policies, Array supports a vast library of policies that are hard-coded at the kernel level, are configurable with point-and-click simplicity via the WebUI or CLI, and can be combined and nested to create advanced customized application traffic management. With Array's unique approach to Layer-7 traffic management, customers get the best of all worlds: ease-of-use, granular control and superior performance and scalability.

2048-Bit SSL Acceleration
SSL acceleration reduces the number of servers required for secure applications, improves server efficiency and dramatically improves application performance.

Offloading compute-intensive key exchange and bulk encryption, and delivering industry-leading client-certificate performance, SSL acceleration is ideal for scaling secure SaaS services, e-commerce environments and business-critical applications requiring high-volume secure connectivity.

Although more secure than the old 1024-bit standard, 2048-bit keys are five times more compute intensive and can impact both performance and the cost of supporting applications. Array 2048 and 4096-bit SSL encryption offers unbeatable scalability and performance with the lowest-cost per SSL TPS to offset transition costs and improve security without impacting performance.

WebWall Web Application Security
With WebWall™, Array's suite of Web application security capabilities, APV Series application delivery controllers can protect against denial of service (DoS) and malformed URL attacks and allow a wide range of Layer 2 through Layer 7 protective policies to be stacked atop one another for increased security.

APV appliances are security-hardened to protect applications and servers from L4 and L7 DDoS attacks and support content filtering to guard against Syn-flood, tear drop, ping-of-death, Nimda, Smurf and other malicious attacks. APV appliances also feature extensive access control lists, network address translation and stateful packet flow inspection – all executed at the kernel level – to guard against attacks and unauthorized access without impacting performance or scalability.

In addition, integrated Web application firewall capabilities provide deep application data inspection – beyond IP and TCP headers – to deal with attacks such as SQL injection and cross-site scripting. Deployable in front of multiple Web or application servers, Array's Web application firewall detects and responds to signatures for known application vulnerabilities and is programmable to deal with future threats.

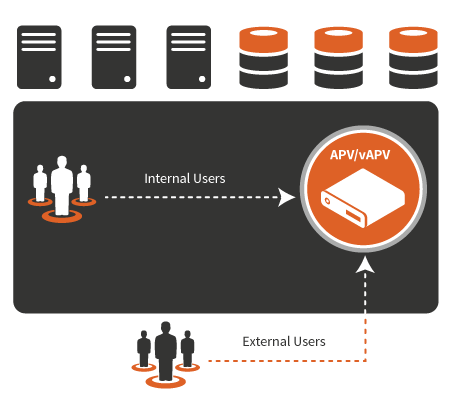

APV Network

Link Load Balancing & GSLB
Link load balancing (LLB) and global server load balancing (GSLB) ensure 99.999% availability for wide area network (WAN) connections and geographically dispersed sites. Link load balancing with end-to-end health monitoring and dynamic routing detects outages and monitors performance in real time to distribute traffic across multiple WAN connections for a premium, always-on end-user experience. Ideal for geographically distributed applications and multi-site architectures, global server load balancing directs traffic away from failed data centers and intelligently distributes services between sites based on proximity, language, capacity, load and response times for maximum performance and availability.

Application Acceleration
APV Series appliances leverage multiple acceleration technologies and optimizations to deliver a premium end-user experience for a wide range of applications and data services. Inmemory caching increases server efficiency and improves seek and response times by over 500%, hardware and software compression can reduce bandwidth utilization and end-user response times by more than half and TCP connection multiplexing aggregates millions of short-lived client connections into persistent fast lanes that increase server efficiency by up to 70% while improving application performance.

ePolicy L7 Application Scripting
Where Array's Layer-7 policy engine cannot meet application traffic management requirements, ePolicy scripting allows transactions and content to be manipulated to achieve traffic distribution that improves data center efficiency and mitigates the effect of delivering applications over the Internet.

eRoute L4 Routing
Using eRoute, inbound and outbound WAN traffic may be load balanced across multiple ISP links based on preset and user-defined algorithms and directed across routes optimized for maximum stability and performance. Additional L4 traffic management features include VLANs, port forwarding, port and link redundancy and the ability to bundle multiple low-cost links to improve bandwidth utilization and reduce costs.

Application-Specific Certifications
In conjunction with ISVs and application developer partners, Array APV Series appliances have been certified to provide load balancing, acceleration and security for enterprise applications such as Microsoft Lync 2010 and 2013, Microsoft Exchange 2010 and 2013, SAP, Oracle, eClinicalWorks and others. Leveraging deployment guides, businesses can take the guesswork out of application delivery. Following simple step by step instructions, IT can rapidly and confidently configure APV appliances for optimized delivery of business critical applications.

Traffic Shaping & QoS
Traffic shaping optimizes application traffic on WAN links to improve bandwidth utilization and end-user response times. Supporting user-defined policies, APV Series appliances prevent bandwidth-intensive applications from over-utilizing WAN links and ensure essential applications are prioritized to meet service level agreements. Used in conjunction with link load balancing, global server load balancing and QoS features such as filters and CBQs, traffic shaping can dramatically improve application performance.

IPv6 Support
For organizations needing an IPv6 Web presence, server load balancing protocol translation (SLBPT) transforms existing IPv4 Web sites into IPv6 compatible sites and greatly reduces the need for duplicate equipment, content and management. Where there is a need to make the most of depleted IPv4 resources, NAT and dual NAT (dual-stack IPv6) allow multiple clients to utilize a single IPv4 address. In migration environments, Array IPv6 solutions support both NAT64 and DNS64 to enable IPv6 clients to connect with IPv4 servers and content. To ensure a consistent application experience across IPv4 and IPv6 clients and networks – and to enable fully-capable, next-generation solutions – IPv6 feature parity is supported for all Array APV Series application delivery controllers.

Management & Integration
APV Series application delivery controllers are simple to install and offer intuitive configuration and management via a WebUI and a familiar command line interface. Using the administration tool kit, network managers can view the status for a wide range of system parameters, enable services on the fly and automate configuration using XML-RPC. Leveraging extensible APIs, application and network intelligence can be integrated with third-party monitoring and management or exported for optimizing complementary data center systems. In addition, APV Series appliances support VMware vCenter integration for intelligent command and control of virtualized application infrastructure.

eCloud APIs & OpenStack Integration
To meet the deployment and management requirements of load balancing and application delivery in the cloud, Array's eCloud API provides a script-level interface for cloud management systems to manage and monitor Array devices and assist in interactions between cloud operating systems and virtual machines running Array load balancing. For cloud providers and enterprises leveraging the OpenStack architecture for cloud management and automation, Array's integration with OpenStack load balancing-as-a-service (LBaaS) creates a standardized means to rapidly integrate with and control Array technology.

Product Editions
APV Series hardware appliances support two app delivery product editions. AppVelocity supports a rich server load balancing and application acceleration feature set optimized for local traffic management. AppVelocity-S combines high-performance SSL acceleration with server load balancing and application acceleration to create a traffic management solution ideal for ecommerce environments and applications requiring a high-degree of Secure connectivity. Both AppVelocity and AppVelocity-S product editions include link load balancing and support global server load balancing as an option. vAPV virtual appliances bundle all Array load balancing and application delivery features and support GSLB as an option.

Physical & Virtual Appliances
Dedicated APV appliances leverage a multicore architecture, SSDs, hardware SSL and compression, energy-efficient components and 10 GigE to create solutions purpose-built for scalable traffic management.

The APV10650 is available as an AVX10650 multitenant appliance that is capable of supporting up to 8 fully separate APV ADC instances – each with its own CPU, SSL, memory and I/O resources.

Available for common hypervisors, vAPV virtual appliances are ideal for organizations seeking to benefit from the flexibility of virtual environments, offer infrastructure services and new elastic business models or evaluate Array application delivery with minimal risk and up-front cost.

Product Features
Availability
Layer 2-7 Policy & Group Management Multi-level virtual service policy routing – Static, default and backup policies and groups – Layer 2-7 application routing policies – Layer 2-7 server persistence – Application load balancing based on round robin, weighted round robin, least connections, shortest response and SNMP
Layer 2-3 Load Balancing IP/MAC based load balancing for any IP protocol – Round robin, persistent IP and return to sender – Firewall, IPS/ IDS, anti-spam, anti-virus and composite applications
Layer 4 Load Balancing TCP, TCPS and UDP protocols – Round robin, weighted round robin, least connections and shortest response – Persistent IP, hash IP, consistent hash IP, persistent IP + port and port range – All single port TCP applications, RADIUS and DNS server support – Composite IP application support
Layer 7 Load Balancing HTTP/HTTPS, FTP/FTPS, SIP, RTSP and RDP – L7 content switching (QoS network and client port - SSL and SIP session ID - HTTP URL, host name, cookie and any header - hash header, cookie and query) – URL redirect and HTTP request/response rewrite – HTTP request filter
Server Persistence Source + destination IP, Client IP, SSLID, HTTP header, URL, cookie, application – Individual session control
Content Routing & Switching One arm, configurable reverse or transparent proxy mode per VIP – Configurable reverse or transparent proxy mode, triangle mode – Nested L7 and L4 policies – Combine L7 and L4 policies
Global Server Load Balancing Application availability from multiple locations worldwide – DNS DoS protection – Global site/service selection – Proximity and IP persistence – Load balancing between multi-site SSL VPN deployments
Link Load Balancing Outbound: round robin, weighted round robin, shortest response time, target proximity/dynamic detection – Inbound: round robin, weighted round robin, target proximity/dynamic detection – Integrated DNS
ePolicy L7 Application Scripting Customize SLB policies and collaborate with SLB methods to realize load balancing among real services – Analyze packet contents of HTTP, simple object access protocol (SOAP), extensible markup language (XML) and diameter protocols – Receive, send, analyze, and discard generic TCP and TCPS packets – Perform pattern matching for text data – Control TCP connections – Monitor and take statistics of traffic
eRoute L4 Routing Policy-based routing based on port, source/destination IP, UDP protocols, TCP – RIPv1, RIPv2 and OSPF support – Return to sender (RTS)/IP flow persistence – Port forwarding, link aggregation and port redundancy – Transparent to VPN remote access
Application, Server & Link Health Checks ARP, ICMP, TCP, HTTP/HTTPS, DNS, Radius, RTSP, SIP single port/protocol health checks – Multi-port health checks – Health checks by protocol and content verification – Link health checks based on physical port, ICMP and user-defined L4 – Next gateway health checks, destination path health checks – Ensure availability and performance of applications over WAN links from a single point of management – Scriptable customer-defined composite health checks
Clustering Up to 32 nodes – Active/active, active/standby – Configuration synchronization – Application-specific VIP health checks – Stateful TCP failover – Fast failover via USB ports – Automatic ISP failover
Single System Image Create a single VIP (single ADC instance) out of any number of dedicated, multi-tenant or virtual APV appliances – Enable ultimate flexibility in scaling out
IPv6 Full IPv6 support – DNS64 & NAT64 – Dual Stack Lite – IPv6 to IPv4 and IPv4 to IPv6 NAT and full IPv6 addressing – IPv6 ready gold certified
Networking Link aggregation, VLAN/MNET, NTP – Static and port-based NAT, advanced NAT for transparent use of multiple WAN links
Acceleration
Application Performance Dynamic detect – Client connection persistence – Connection multiplexing – TCP buffering – IEEE 802.3ad link aggregation
SSL Acceleration (2048 & 4096-bit) Hardware SSL processing – SSLv3 and TLSv1 – 4096-bit maximum cipher key size (RSA) – End-to-end security (Server-side SSL communication) – SSL session reuse and timeout control – Cipher strength reduction – Customizable cipher suite order – Customizable SSL error pages – Sharable to multiple SLB services – SSL self- check
Compression Hardware accelerated – Virtualized compression – Inline HTTP processing – Compresses HTML, XML, Java scripts and CSS – Compresses Microsoft file formats (DOC, XLS, PPT) and PDF
Caching Virtualized, memory-based cache – HTTP 1.1 compliant, policy-based cache
Traffic Shaping Guarantees application performance – Rate shaping for setting user-defined rate limits on critical applications – QoS for traffic prioritization – Supports CBQs and borrow and unborrow bandwidth from queues – Advanced ACL (SLB QoS) – Supports QoS filters based on ports and protocols including TCP, UDP and ICMP
Security
WebWall Web Application Security Hardened OS – Secure access only, access control based on client certificate information and access method – Customer configurable SSL/TLS version, cipher suite and minimum cipher strength – Tamper-proof key and certificate protection – WebWall stateful packet-inspection firewall – Over 1000 ACL rules without performance degradation – Proxy-based firewall – TCP syn-flood protection – Flash and surge event protection – DoS protection – HTTP access method control – URL filtering – HTTP/DNS cache for mitigating DDoS – Web Application Firewall – Deep application data inspection for dealing with attacks such as SQL injection and cross-site scripting – Detects and responds to known application vulnerabilities – Programmable to deal with future threats
DDoS Protection (SLB) Protocol Attacks: SSL invalid packet, SSL handshake attack, HTTP invalid packet attack – Application Attacks: HTTP slow attack, HTTP flood attack, bandwidth consumption attack – DDoS attack logging
Client-Server Certificate Management CSR and private key generation – Self-signed certificate support – Import certificate and private key – Import certificate format – Extensive certificate support – Certificate backup and restore – Wildcard certificate support
Client Certificate Authentication & Authorization Turbo client certificate verification – Root and intermediate CA import – Basic client certificate verification – Certificate chain support – Certificate revocation list (HTTP, FTP, LDAP) – Online certificate status protocol (OCSP, HTTP/HTTPS) – Certificate-based access control – Inside SSL server, two-way certificates
Client Certificate Application Integration Parse client certificate field information with different language/encoding – Pass individual field/group and field/ customer format to back-end applications – HTTP header, URL and cookie – Integrated with proxy rewrite – Detailed SSL statistics
Management
System Centralized cluster management – Secure CLI, WebUI and SSH remote management – XML-RPC for integration with 3rd party management and monitoring – SNMP V2/V3 and private MIBs – Syslog (UDP or TCP) – Administrator and operator account management – E-mail, paging and alerting capability – Multiple configuration files and unit configuration synchronization – Online troubleshooting – Realtime monitoring – Role-based administration control
eCloud API Interface for cloud management systems to control and monitor hardware and virtual APV appliances – Assists interaction between components such as virtual machines in CloudOS environments – Remote management of interaction between components such as virtual machines in CloudOS environments – Remote management of APV appliances – Notification of events on APV appliances – eCloud demo integrated on APV appliance – APV appliances – Notification of events on APV appliances – eCloud demo integrated on APV appliance – Supports integration with OpenStack Load Balancing-as-a-Service (LBaaS) standard Supports integration with OpenStack Load Balancing-as-a-Service (LBaaS) standard

Specifications:

Dedicated Appliances
  APV1600/1600T APV2600 APV3600/3650 APV5600 APV6600 APV6600FIPS APV7600 APV10650 APV11600
Max. L4 Throughput 2 Gbps/2.5 Gbps 10 Gbps 20 Gbps/30 Gbps 15 Gbps 35 Gbps 35 Gbps 80 Gbps 120 Gbps 140 Gbps
Max. 2048-bit SSL TPS 2K/2K 5K 25K/25K 25K 25K 9K 70K 70K 70K
Max. SSL Throughput 700 Mbps / 1 Gbps 3 Gbps 15 Gbps / 15 Gbps 10 Gbps 20 Gbps 2 Gbps 45 Gbps 40 Gbps 50 Gbps
1 GbE Copper Standard Standard Standard Standard Standard Standard Optional N/A N/A
1 GbE Fiber N/A Optional Standard Optional Optional Optional N/A N/A N/A
10 GbE Fiber N/A Optional Standard Standard Standard Standard Standard Standard Standard
Power Supply APV1600, 1600T, 2600 Single Power: 100-240VAC, 8-4A, 50-60Hz
APV2600 Dual Power: 100-240VAC, 8-4A, 50-60Hz
APV3600, 3650 Dual Power: 100-240VAC, 5-3A, 50-60Hz
APV5600, 6600, 6600FIPS, 7600, 10650, 11600 Dual Power: 100-240VAC, 10-5A, 50-60Hz
Dimensions APV1600, 1600T, 2600 Single Power: 1U – 17” W x 15” D x 1.75”
APV2600, 3600, 3650 Dual Power: 1U – 17” W x 19.875” D x 1.75” H
APV5600, 6600, 6600FIPS, 7600, 10650, 11600 Dual Power: 2U – 17” W x 22.5” D x 3.5” H
Weight APV1600, 1600T, 2600 Single Power: 13.6 lbs
APV2600 Dual Power: 17.2 lbs.
APV3600, 3650 Dual Power: 19.8 lbs
APV5600, 6600, 6600FIPS, 7600, 10650, 11600 Dual Power: 28 lbs.
Environmental Operating Temperature: 0° to 45°C, Humidity: 0% to 90%, Non condensing
Regulatory Compliance ICES-003, EN 55024, CISPR 22, AS/NZS 3548, FCC, 47FR part 15 Class A, VCCI-A, APV6600FIPS only: FIPS140-2 Level 2
Safety CSA, C/US, CE, IEC 60950-1, CSA 60950-1, EN 60950-1
Support Gold, Silver and Bronze Level Support Plans
Warranty 1 Year Hardware, 90 Days Software
vAPV
With the exception of hardware SSL acceleration, vAPV virtual application delivery controllers support all APV features.
VMware ESXi 4.1 or Later
XenServer 5.6 or Later
OpenXen 4.0 or Later
KVM 1.1.1-1.8.1 or later
Hyper-V (Windows Server 2012)
2 Virtual CPUs
4 Virtual Network Adapters
2GB RAM
40GB Disk

Pricing Notes:

Array Products
Array Networks APV 6600 Series
APV 6600 AppVelocity Dual Power Supplies ADC (SLB, LLB, 16x1GbE copper ports, 2x10GbE SFP+ ports, 2U)
#AW960040
Our Price: $59,995.00
Call For Lowest Price!
APV 6600 AppVelocity-S Dual Power Supplies ADC (SLB, LLB, 16x1GbE copper ports, 2x10GbE SFP+ ports, 80,000 SSL TPS 1K Keys or 25,000 SSL TPS 2K Keys, 2U)
#AW960041
Our Price: $78,995.00
Call For Lowest Price!
APV 6600 AppVelocity Dual Power Supplies ADC (SLB, LLB, 16x1GbE copper ports, 4x1GbE SFP ports (SX Fiber incl.), 2x10GbE SFP+ ports, 2U)
#AW960042
Our Price: $62,995.00
Call For Lowest Price!
APV 6600 AppVelocity-S Dual Power Supplies ADC (SLB, LLB,, 16x1GbE copper ports, 4x1GbE SFP ports (SX Fiber incl.), 2x10GbE SFP+ ports, 80,000 SSL TPS 1K Keys or 25,000 SSL TPS 2K Keys, 2U)
#AW960043
Our Price: $81,995.00
Call For Lowest Price!
APV 6600 AppVelocity Dual Power Supplies ADC (SLB, LLB, 16x1GbE copper ports, 4x10GbE SFP+ ports, 2U)
#AW960044
Our Price: $64,995.00
Call For Lowest Price!
APV 6600 AppVelocity-S Dual Power Supplies ADC (SLB, LLB, 16x1GbE copper ports, 4x10GbE SFP+ ports, 80,000 SSL TPS 1K Keys or 25,000 SSL TPS 2K Keys, 2U)
#AW960045
Our Price: $83,995.00
Call For Lowest Price!
APV 6600 AppVelocity-S Dual Power Supplies ADC (SLB, LLB, 8x1GbE copper ports, 4x10GbE SFP+ ports, 25,000 SSL TPS 2K Keys, 2U)
#AW960046
Our Price: $79,995.00
Call For Lowest Price!
Array Networks APV 6600 FIPS Series
APV 6600 AppVelocity-FIPS Dual Power Supplies ADC (SLB, LLB, 8x1GbE copper ports, 2x10GbE SFP+ ports, 9,000 SSL TPS 2K Keys, 2U)
#AW960049
Our Price: $105,995.00
Call For Lowest Price!
APV 6600 AppVelocity-FIPS Dual Power Supplies ADC (SLB, LLB,, 8x1GbE copper ports, 4x10GbE SFP+ ports, 9,000 SSL TPS 2K Keys, 2U)
#AW960048
Our Price: $110,995.00
Call For Lowest Price!
APV 6600 AppVelocity (AW960040) Support
APV 6600 AppVelocity (AW960040) - Gold Service
Includes: Software Updates, Repair & Return, E-Mail Support, Support Web Site, 24X7 Phone Support, Software Upgrade, and Advance Replacement Learn more
#GS960040
Our Price: $11,999.00
APV 6600 AppVelocity (AW960040) - Silver Service
Includes: Software Updates, Repair & Return, E-Mail Support, Support Web Site, 12X5 Phone Support and Software Upgrade Learn more
#SS960040
Our Price: $9,599.00
APV 6600 AppVelocity (AW960040) - Bronze Service
Includes: Software Updates, E-Mail Support, Support Web Site, and Software Upgrade Learn more
#BS960040
Our Price: $7,199.00
APV 6600 AppVelocity (AW960041) Support
APV 6600 AppVelocity (AW960041) - Gold Service
Includes: Software Updates, Repair & Return, E-Mail Support, Support Web Site, 24X7 Phone Support, Software Upgrade, and Advance Replacement Learn more
#GS960041
Our Price: $15,799.00
Call For Lowest Price!
APV 6600 AppVelocity (AW960041) - Silver Service
Includes: Software Updates, Repair & Return, E-Mail Support, Support Web Site, 12X5 Phone Support and Software Upgrade Learn more
#SS960041
Our Price: $12,639.00
APV 6600 AppVelocity (AW960041) - Bronze Service
Includes: Software Updates, E-Mail Support, Support Web Site, and Software Upgrade Learn more
#BS960041
Our Price: $9,479.00
APV 6600 AppVelocity (AW960042) Support
APV 6600 AppVelocity (AW960042) - Gold Service
Includes: Software Updates, Repair & Return, E-Mail Support, Support Web Site, 24X7 Phone Support, Software Upgrade, and Advance Replacement Learn more
#GS960042
Our Price: $12,599.00
APV 6600 AppVelocity (AW960042) - Silver Service
Includes: Software Updates, Repair & Return, E-Mail Support, Support Web Site, 12X5 Phone Support and Software Upgrade Learn more
#SS960042
Our Price: $10,079.00
APV 6600 AppVelocity (AW960042) - Bronze Service
Includes: Software Updates, E-Mail Support, Support Web Site, and Software Upgrade Learn more
#BS960042
Our Price: $7,559.00
APV 6600 AppVelocity (AW960043) Support
APV 6600 AppVelocity (AW960043) - Gold Service
Includes: Software Updates, Repair & Return, E-Mail Support, Support Web Site, 24X7 Phone Support, Software Upgrade, and Advance Replacement Learn more
#GS960043
Our Price: $16,399.00
Call For Lowest Price!
APV 6600 AppVelocity (AW960043) - Silver Service
Includes: Software Updates, Repair & Return, E-Mail Support, Support Web Site, 12X5 Phone Support and Software Upgrade Learn more
#SS960043
Our Price: $13,119.00
APV 6600 AppVelocity (AW960043) - Bronze Service
Includes: Software Updates, E-Mail Support, Support Web Site, and Software Upgrade Learn more
#BS960043
Our Price: $9,839.00
APV 6600 AppVelocity (AW960044) Support
APV 6600 AppVelocity (AW960044) - Gold Service
Includes: Software Updates, Repair & Return, E-Mail Support, Support Web Site, 24X7 Phone Support, Software Upgrade, and Advance Replacement Learn more
#GS960044
Our Price: $12,999.00
APV 6600 AppVelocity (AW960044) - Silver Service
Includes: Software Updates, Repair & Return, E-Mail Support, Support Web Site, 12X5 Phone Support and Software Upgrade Learn more
#SS960044
Our Price: $10,399.00
APV 6600 AppVelocity (AW960044) - Bronze Service
Includes: Software Updates, E-Mail Support, Support Web Site, and Software Upgrade Learn more
#BS960044
Our Price: $7,799.00
APV 6600 AppVelocity (AW960045) Support
APV 6600 AppVelocity (AW960045) - Gold Service
Includes: Software Updates, Repair & Return, E-Mail Support, Support Web Site, 24X7 Phone Support, Software Upgrade, and Advance Replacement Learn more
#GS960045
Our Price: $16,799.00
Call For Lowest Price!
APV 6600 AppVelocity (AW960045) - Silver Service
Includes: Software Updates, Repair & Return, E-Mail Support, Support Web Site, 12X5 Phone Support and Software Upgrade Learn more
#SS960045
Our Price: $13,439.00
APV 6600 AppVelocity (AW960045) - Bronze Service
Includes: Software Updates, E-Mail Support, Support Web Site, and Software Upgrade Learn more
#BS960045
Our Price: $10,079.00
APV 6600 AppVelocity (AW960046) Support
APV 6600 AppVelocity (AW960046) - Gold Service
Includes: Software Updates, Repair & Return, E-Mail Support, Support Web Site, 24X7 Phone Support, Software Upgrade, and Advance Replacement Learn more
#GS960046
Our Price: $15,999.00
Call For Lowest Price!
APV 6600 AppVelocity (AW960046) - Silver Service
Includes: Software Updates, Repair & Return, E-Mail Support, Support Web Site, 12X5 Phone Support and Software Upgrade Learn more
#SS960046
Our Price: $12,799.00
APV 6600 AppVelocity (AW960046) - Bronze Service
Includes: Software Updates, E-Mail Support, Support Web Site, and Software Upgrade Learn more
#BS960046
Our Price: $9,599.00
APV 6600 AppVelocity-FIPS AW960049 Support
APV 6600 AppVelocity-FIPS AW960049 - Gold Service
Includes: Software Updates, Repair & Return, E-Mail Support, Support Web Site, 24X7 Phone Support, Software Upgrade, and Advance Replacement Learn more
#GS960049
Our Price: $21,199.00
Call For Lowest Price!
APV 6600 AppVelocity-FIPS AW960049 - Silver Service
Includes: Software Updates, Repair & Return, E-Mail Support, Support Web Site, 12X5 Phone Support and Software Upgrade Learn more
#SS960049
Our Price: $16,959.00
Call For Lowest Price!
APV 6600 AppVelocity-FIPS AW960049 - Bronze Service
Includes: Software Updates, E-Mail Support, Support Web Site, and Software Upgrade Learn more
#BS960049
Our Price: $12,719.00
APV 6600 AppVelocity-FIPS AW960048 Support
APV 6600 AppVelocity-FIPS AW960048 - Gold Service
Includes: Software Updates, Repair & Return, E-Mail Support, Support Web Site, 24X7 Phone Support, Software Upgrade, and Advance Replacement Learn more
#GS960048
Our Price: $22,199.00
Call For Lowest Price!
APV 6600 AppVelocity-FIPS AW960048 - Silver Service
Includes: Software Updates, Repair & Return, E-Mail Support, Support Web Site, 12X5 Phone Support and Software Upgrade Learn more
#SS960048
Our Price: $17,759.00
Call For Lowest Price!
APV 6600 AppVelocity-FIPS AW960048 - Bronze Service
Includes: Software Updates, E-Mail Support, Support Web Site, and Software Upgrade Learn more
#BS960048
Our Price: $13,319.00
Global Server Load Balancing License
APV4600/5600/6600/7600/10650/11600 TM8.x Feature Option: Global Server Load Balancing License
#AW920560
Our Price: $9,995.00
Global Server Load Balancing License - Support
Global Server Load Balancing License - Gold Service
Includes: Software Updates, Repair & Return, E-Mail Support, Support Web Site, 24X7 Phone Support, Software Upgrade, and Advance Replacement Learn more
#GS920560
Our Price: $1,999.00
Global Server Load Balancing License - Silver Service
Includes: Software Updates, Repair & Return, E-Mail Support, Support Web Site, 12X5 Phone Support and Software Upgrade Learn more
#SS920560
Our Price: $1,599.00
Global Server Load Balancing License - Bronze Service
Includes: Software Updates, E-Mail Support, Support Web Site, and Software Upgrade Learn more
#BS920560
Our Price: $1,199.00
Hardware Compression License
Hardware Compression license option for AppVelocity-S models APV5600/6600/7600/10650/11600
#AU920641
Our Price: $9,995.00
Hardware Compression License - Support
Hardware Compression License Option - Gold Service
Includes: Software Updates, Repair & Return, E-Mail Support, Support Web Site, 24X7 Phone Support, Software Upgrade, and Advance Replacement Learn more
#GS920641
Our Price: $1,999.00
Hardware Compression License Option - Silver Service
Includes: Software Updates, Repair & Return, E-Mail Support, Support Web Site, 12X5 Phone Support and Software Upgrade Learn more
#SS920641
Our Price: $1,599.00
Hardware Compression License Option - Bronze Service
Includes: Software Updates, E-Mail Support, Support Web Site, and Software Upgrade Learn more
#BS920641
Our Price: $1,199.00
Array Networks APV 6600 Series Factory Options
Factory Only: SSD option for APV x600 Series.
Note: This replaces the APV HDD.
#AW910277
Our Price: $1,995.00
SSD Option for APV x600 Series Support
SSD Option for APV x600 Series - Gold Service
Includes: Software Updates, Repair & Return, E-Mail Support, Support Web Site, 24X7 Phone Support, Software Upgrade, and Advance Replacement Learn more
#GS910277
Our Price: $399.00
SSD Option for APV x600 Series - Silver Service
Includes: Software Updates, Repair & Return, E-Mail Support, Support Web Site, 12X5 Phone Support and Software Upgrade Learn more
#SS910277
Our Price: $319.00
SSD Option for APV x600 Series - Bronze Service
Includes: Software Updates, E-Mail Support, Support Web Site, and Software Upgrade Learn more
#BS910277
Our Price: $239.00
Array Networks APV Series - Other Hardware Options
When ordering replacement or spare power supply modules, please check the module used in the target appliance and order the same to ensure physical and functional compatibility. 1U power supply modules are not interchangeable since they have different form factor and specifications. 2U power supply modules are not interchangeable since they have different form factor and specifications.
USB Fast Failover Cable for APV1600/2600/4600/5600/6600/7600/10650/11600
#AW300052
Our Price: $166.00
Power Supply Module: 450W, 1U (100-240V, 8-4A, 63-47Hz)
#AR400023
Our Price: $995.00
Power Supply Module: 800W, 2U (100-240V, 10-5, 50-60Hz)
#AR400024
Our Price: $995.00
Power Supply Module: 275W, 1U (100-240V, 4-2A, 63-47Hz)
#AR400019
Our Price: $995.00
Power Supply Module: 620W, 2U (100-240V, 10, 63-47Hz)
#AR400018
Our Price: $995.00
C14 to C13 200V System Power Cord (Japan only)
#AW969001
Our Price: $98.00
Array Networks APV Series - SFP Optical Transceivers
When ordering replacement or spare power supply modules, please check the module used in the target appliance and order the same to ensure physical and functional compatibility. 1U power supply modules are not interchangeable since they have different form factor and specifications. 2U power supply modules are not interchangeable since they have different form factor and specifications.
APV Field Upgrade: SX SFP Fiber Optical Transceiver (1G-Multi Mode 550M / LC / 850nm)
#AW220230
Our Price: $295.00
APV Field Upgrade: LX SFP Fiber Optical Transceiver (1G-Multi Mode 2KM / LC / 1310nm)
#AW220231
Our Price: $495.00
Array Networks Professional Services
When ordering replacement or spare power supply modules, please check the module used in the target appliance and order the same to ensure physical and functional compatibility. 1U power supply modules are not interchangeable since they have different form factor and specifications. 2U power supply modules are not interchangeable since they have different form factor and specifications.
Installation of Array products at one site
#PS909101
Our Price: $2,000.00
Training: Array APV Quickstart (1 day, 1 person)
#PS909201
Our Price: $1,495.00
Training: Array AG/SPX Quickstart (1 day, 1 person)
#PS909202
Our Price: $1,495.00
Training: Array APV Implementation (2 days, 1 person)
#PS909203
Our Price: $2,795.00
Training: Array AG/SPX Implementation (2 days, 1 person)
#PS909204
Our Price: $2,795.00
Training: Instructor Training and Certification (5 days, 1 person)
#PS909205
Our Price: $6,995.00
Professional Services: Per Day Contracting Fee (8 hours)
#PS909301
Our Price: $2,000.00
Professional Services: Extended Hours (max. 8 addl. hours per purchase of PS909301), Per Hour
#PS909309
Our Price: $250.00
