Overview:
AVX7600 multi-tenant appliances provide fully independent ADC instances in a single appliance with guaranteed service performance and resource allocation.

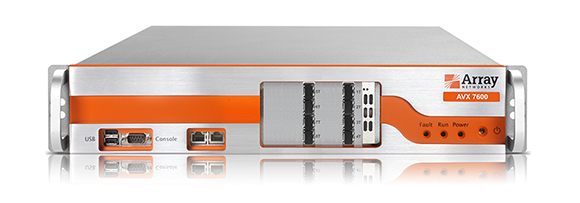

The AVX7600 is a 2RU dual-power appliance that supports 8 independent instances, each supporting all APV Series load balancing and app delivery features and each supporting 7Gbps L4 throughput, 8.5K 2048-bit SSL TPS and 4Gbps SSL throughput via dedicated CPU, SSL and I/O resources.
Array AVX Series Virtualized Appliances
Multiple Network Functions
AVX Series appliances can host both vAPV virtual application delivery controller (ADC) and vxAG virtual secure access gateway (SSL VPN) instances, and can mix and match functions as needed to meet deployment requirements. Future support includes aCelera virtual WAN optimization controllers (WOCs), future Array products and 3rd party application delivery and security functions.
Flexible Size Options

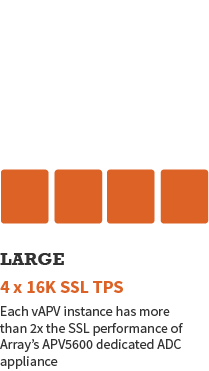

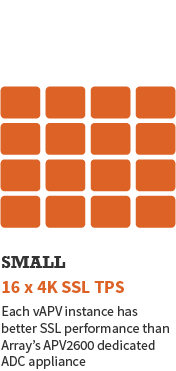

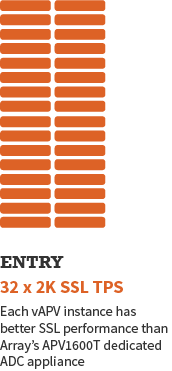

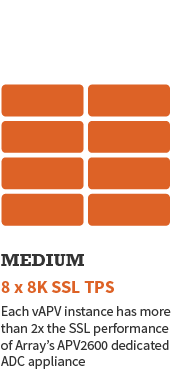

AVX Series appliances can host four different size vAPV and vxAG instances: entry, small, medium and large. Instances of different sizes can be mixed and matched as needed to meet deployment requirements. Smaller sizes will allow for more instances per system, and larger sizes will allow for greater performance per instance.
Pay-As-You-Go Capacity
AVX Series appliances can be purchased in quarter capacity increments, allowing you to pay for what you need today and purchase additional capacity as needed to meet future deployment requirements. vAPV and vxAG licenses are included free of charge; mix and different functions and sizes up to your purchased system capacity.
Guaranteed Performance
Each vAPV and vxAG instance is automatically assigned dedicated CPU, SSL, memory and input/output interfaces to ensure guaranteed performance per virtual appliance. In addition, dedicated resources are reserved for hypervisor management to eliminate virtual machine contention and enable SLAs for business-critical customers and applications.
High Availability
AVX Series appliances provide high availability at both system and virtual appliance levels. By deploying a high availability pair of vAPV or vxAG instances across a pair of AVX Series appliances, availability is assured in the event that either a system or a virtual appliances is unresponsive.
vAPV Virtual ADC
Availability
Local server load balancing, as well as both global server load balancing (GSLB) and link load balancing (LLB) ensure application uptime in the event that servers, ISP links, network segments or data centers become overburdened or unresponsive.
Performance
SSL offloading, connection multiplexing, caching, compression and traffic shaping accelerate Web and application performance while significantly improving the efficiency of network connections and back end servers.
Security
A purpose-built, ‘Heartbleed proof’ SSL encryption stack, in addition to a reverse proxy architecture, kernel-level ACLs, packet filtering, DDoS protection and WebWall™ application security suite, ensure security for business-critical applications.
Control
Ensure persistence, create Layer-7 content switching rules that direct application traffic to specific servers, and manipulate HTTP headers to enhance application functionality without the need for additional application development.
Management & Orchestration
Use Array’s eCloud™ RESTful API to enable orchestration of app delivery functions from cloud and virtualization management platforms including VMware vRealize Orchestrator, Microsoft System Center Configuration Manager and OpenStack Neutron LBaaS.
vxAG Virtual SSL VPN
Access Methods
Select from a range of access methods including Layer-3 network level connectivity, application-level access, Web access and RDP access to physical and virtual desktops via a unified client that provides a superior mix of flexibility, control and security.
Authentication, Authorization & Auditing (AAA)
Device-based pre-authentication, dual and multi-factor authentication using Duo, RSA, Syferlock and others, per-user policy engine for identity-based access to URLs, files, networks and applications, and extensive logs and statistics.
End-to-End Security
High-performance 2048-bit SSL encryption, endpoint security including device-based identification, host-checking, cache cleaning and adaptive policies for guarding servers and applications against attack.
Mobility
Secure mobile access from iOS and Android smart phones and tablets with support for VPN on demand, a secure browser for HTML5 apps, remote access to physical and virtual desktops and integrated mobile application management.
User Experience
Up to 256 secure access portals per vxAG instance, each fully customizable to the security and usability preferences of multiple tenants and communities of interest, and Array’s SpeedCore® architecture for delivering industry-leading performance.

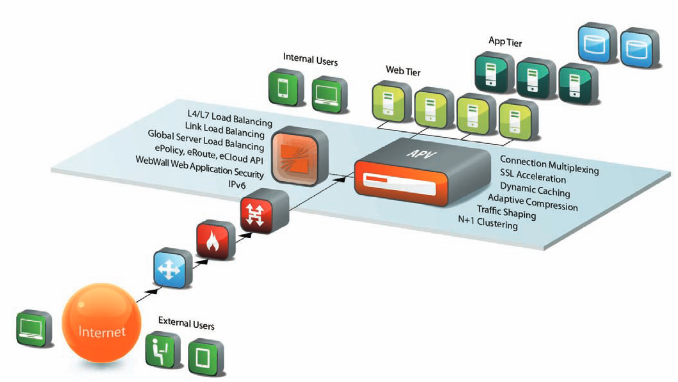

Highlights & Benefits
- Multi-tenant appliance supporting 8 instances. Each instance supports 7 Gbps L7 throughput, 8.5K 2048-bit SSL TPS, and 4 Gbps SSL throughput to support multiple tenants, applications, or other divisions
- Integrated Layer-4 and Layer-7 server load balancing, link load balancing, global server load balancing, connection multiplexing, SSL acceleration, caching, compression, traffic shaping, IPv6 and Web application security
- High-performance, kernel-level Layer-7 policy engine for enabling customizable application traffic management without impacting performance or scalability
- Industry-leading performance and $/SSL TPS for 2048-bit SSL with advanced client certificate handling for secure application support and easy application integration
- Multi-level security including a hardened OS, reverse-proxy architecture and kernel-level Web firewall for guarding applications without impacting performance
- Delivers 99.999% application availability, up to 5x application acceleration and provides a first line of defense for Web-enabled applications and cloud services
- Offloads Web and application servers for increased efficiency, capacity and return on investment (ROI)
- Intelligently load balances traffic across optimal WAN links to reduce costs and improve the performance of business-critical applications
- Application-specific certifications, guides and policies for rapid deployment and accelerated delivery of business-critical enterprise applications
- ePolicy™ L7 application scripting and eRoute™ L4 routing for custom control of application traffic
- IPv6 gold certified for IPv4 preservation, IPv4/6 translation and IPv6 migration
- OpenStack load balancing-as-a-service (LBaaS) integration, Array eCloud™ SOAP API and XML-RPC for seamless interaction with cloud management systems and 3rd party monitoring solutions
- Extensible SOAP API for ease of integration with VMware vCenter Orchestrator and Microsoft System Center
- N+1 clustering for up to 32 hardware or virtual instances, single system image and stateful TCP failover for industry-leading availability and scalability
- Space-efficient, redundant-power hardware appliances that consume 10-35% less power versus alternative solutions
- Familiar CLI, intuitive WebUI and centralized management for ease of use and configuration
Features:
Guaranteed SSL Performance In a Shared Environment
Performing compute-intensive SSL encryption on virtualized servers is inefficient. Array's purpose-built virtualized appliances excel at this crucial network function – shrinking the data center footprint for app delivery by up to 16x versus dedicated ADC appliances and providing the lowest possible cost per SSL transaction per second (TPS).
Management Integration

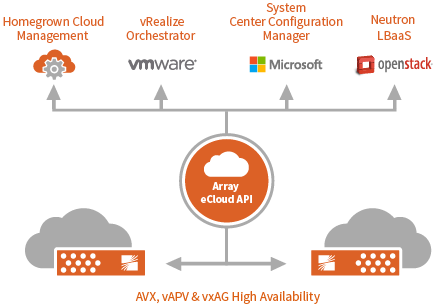

Public and private clouds require more than just virtualization. Orchestration is essential to gaining the agility and management efficiency that define the cloud. With Array’s eCloud™ API, AVX Series virtualized appliances can integrate with VMware vRealize Orchestrator, Microsoft System Center Configuration Manager and OpenStack Neutron LBaaS, as well as home grown cloud management platforms.
AVX Series virtualized appliances are ideal for infrastructure-as-a-service (IaaS) cloud providers with more demanding customers – and enterprises with business-critical applications and software services – seeking the agility of cloud and virtualization with the performance of dedicated appliances.

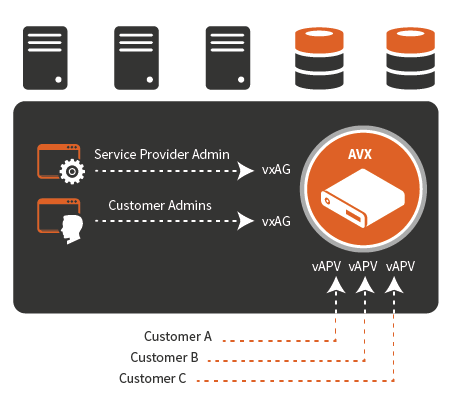

Cloud Intrastructure Services

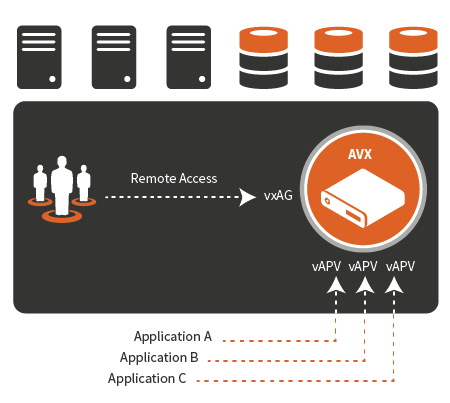

Business-Critical Applications
Product Description

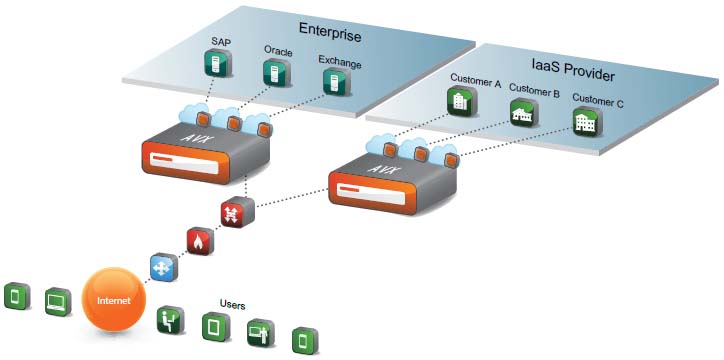

Dedicated Multi-Tenant Resources
The AVX7600 features eight fully independent ADC instances capable of supporting their own Array operating system and powered by dedicated physical resources such as I/O, CPU, memory and SSL. As a result, the AVX7600 offers the equivalent of of eight separate 1RU ADC units in just 2RU, where customers and workloads can be assured of guaranteed, measurable performance. Each instance is separately programmable and centrally manageable, allowing the utmost in flexibility and control. Through dedicated hardware and software resources, IaaS operators and enterprises gain a true multi-tenant ADC appliance.
Server Load Balancing
APV Series application delivery controllers ensure 99.999% availability for cloud services and enterprise applications. Leveraging robust distribution algorithms, health check mechanisms, clustering and failover capabilities, the AVX7600 appliance maintains connections, ensures persistence, directs traffic away from failed servers and intelligently distributes application services across multiple servers for optimized performance and availability.
Layer-7 Policy Engine
Customized traffic management is often a trade-off between performance, control and ease-of-use. Unlike ADCs that rely on complex, computeintensive scripting to enable custom Layer-7 policies, Array supports a vast library of policies that are hard-coded at the kernel level, are configurable with point-and-click simplicity via the WebUI or CLI and can be combined and nested to create advanced customized application traffic management. With Array's unique approach to Layer-7 traffic management, customers get the best of all worlds: ease-of-use, granular control and superior performance and scalability.
2048-Bit SSL Acceleration
SSL acceleration reduces the number of servers required for secure applications, improves server efficiency and dramatically improves application performance.
Offloading compute-intensive key exchange and bulk encryption, and delivering industry-leading client-certificate performance, SSL acceleration is ideal for scaling secure SaaS services, e-commerce environments and business-critical applications requiring high-volume secure connectivity.
Although more secure than the old 1024-bit standard, 2048-bit keys are five times more compute intensive and can impact both performance and the cost of supporting applications. Array 2048 and 4096-bit SSL encryption offers unbeatable scalability and performance with the lowest-cost per SSL TPS to offset transition costs and improve security without impacting performance.
WebWall Web Application Security
With WebWall™, Array's suite of Web application security capabilities, the AVX7600 application delivery controller can protect against denial of service (DoS) and malformed URL attacks and allow a wide range of Layer 2 through Layer 7 protective policies to be stacked atop one another for increased security.
AVX7600 is security-hardened to protect applications and servers from L4 and L7 DDoS attacks and support content filtering to guard against Syn-flood, tear drop, ping-of-death, Nimda, Smurf and other malicious attacks. AVX7600 also features extensive access control lists, network address translation and stateful packet flow inspection – all executed at the kernel level – to guard against attacks and unauthorized access without impacting performance or scalability.
In addition, integrated Web application firewall capabilities provide deep application data inspection – beyond IP and TCP headers – to deal with attacks such as SQL injection and cross-site scripting. Deployable in front of multiple Web or application servers, Array's Web application firewall detects and responds to signatures for known application vulnerabilities and is programmable to deal with future threats.
Link Load Balancing & GSLB
Link load balancing (LLB) and global server load balancing (GSLB) ensure 99.999% availability for wide area network (WAN) connections and geographically dispersed sites. Link load balancing with end-to-end health monitoring and dynamic routing detects outages and monitors performance in real time to distribute traffic across multiple WAN connections for a premium, always-on end-user experience. Ideal for geographically distributed applications and multi-site architectures, global server load balancing directs traffic away from failed data centers and intelligently distributes services between sites based on proximity, language, capacity, load and response times for maximum performance and availability.
Application Acceleration
APV Series appliances leverage multiple acceleration technologies and optimizations to deliver a premium end-user experience for a wide range of applications and data services. Inmemory caching increases server efficiency and improves seek and response times by over 500%, hardware and software compression can reduce bandwidth utilization and end-user response times by more than half and TCP connection multiplexing aggregates millions of short-lived client connections into persistent fast lanes that increase server efficiency by up to 70% while improving application performance.
ePolicy L7 Application Scripting
Where Array's Layer-7 policy engine cannot meet application traffic management requirements, ePolicy scripting allows transactions and content to be manipulated to achieve traffic distribution that improves data center efficiency and mitigates the effect of delivering applications over the Internet.
eRoute L4 Routing
Using eRoute, inbound and outbound WAN traffic may be load balanced across multiple ISP links based on preset and user-defined algorithms and directed across routes optimized for maximum stability and performance. Additional L4 traffic management features include VLANs, port forwarding, port and link redundancy and the ability to bundle multiple low-cost links to improve bandwidth utilization and reduce costs.
Application-Specific Certifications
In conjunction with ISVs and application developer partners, AVX7600 has been certified to provide load balancing, acceleration and security for enterprise applications such as Microsoft Lync 2010, Microsoft Exchange 2010 and 2013, SAP, Oracle, eClinicalWorks and others. Leveraging deployment guides, businesses can take the guesswork out of application delivery. Following simple step-by-step instructions, IT can rapidly and confidently configure the AVX7600 application delivery controller for optimized delivery of business critical applications.
Traffic Shaping & QoS
Traffic shaping optimizes application traffic on WAN links to improve bandwidth utilization and end-user response times. Supporting user-defined policies, AVX7600 prevents bandwidth-intensive applications from over-utilizing WAN links and ensures essential applications are prioritized to meet service level agreements. Used in conjunction with link load balancing, global server load balancing and QoS features such as filters and CBQs, traffic shaping can dramatically improve application performance.
IPv6 Support
For organizations needing an IPv6 Web presence, server load balancing protocol translation (SLBPT) transforms existing IPv4 Web sites into IPv6 compatible sites and greatly reduces the need for duplicate equipment, content and management. Where there is a need to make the most of depleted IPv4 resources, NAT and dual NAT (dual-stack IPv6) allow multiple clients to utilize a single IPv4 address. In migration environments, Array IPv6 solutions support both NAT64 and DNS64 to enable IPv6 clients to connect with IPv4 servers and content. To ensure a consistent application experience across IPv4 and IPv6 clients and networks – and to enable fully-capable, next-generation solutions – IPv6 feature parity is supported for all Array APV Series and AVX7600 application delivery controllers.
Management & Integration
AVX7600 application delivery controllers are simple to install and offer intuitive configuration and management via a WebUI and a familiar command line interface. Using the administration tool kit, network managers can view the status for a wide range of system parameters, enable services on the fly and automate configuration using XMLRPC. Leveraging extensible APIs, application and network intelligence can be integrated with thirdparty monitoring and management or exported for optimizing complementary data center systems. In addition, AVX Series appliances support VMware vCenter Orchestrator and Microsoft System Center integration for intelligent command and control of virtualized application infrastructure.
eCloud API & OpenStack Integration
To meet the deployment and management requirements of load balancing and application delivery in the cloud, Array's eCloud API provides a script-level interface for cloud management systems to manage and monitor Array devices and assist in interactions between cloud operating systems and virtual machines running Array load balancing. For cloud providers and enterprises leveraging the OpenStack architecture for cloud management and automation, Array's integration with OpenStack load balancing-as-a-service (LBaaS) creates a standardized means to rapidly integrate with and control Array technology.
Product Edition
AVX7600 hardware appliances support the AppVelocity-S product edition, which combines SSL acceleration with server load balancing and application acceleration to create a traffic management solution ideal for SaaS, ecommerce environments and applications requiring a highdegree of secure connectivity. The AppVelocity-S product edition includes link load balancing and supports global server load balancing as an option.
| Product Features |
| Layer 2-7 Policy & Group Management |
Multi-level virtual service policy routing – Static, default and backup policies and groups – Layer 2-7 application routing policies – Layer 2-7 server persistence – Application load balancing based on round robin, weighted round robin, least connections, shortest response and SNMP |
| Layer 2-3 Load Balancing |
IP/MAC based load balancing for any IP protocol – Round robin, persistent IP and return to sender – Firewall, IPS/ IDS, anti-spam, anti-virus and composite applications |
| Layer 4 Load Balancing |
TCP, TCPS and UDP protocols – Round robin, weighted round robin, least connections and shortest response – Persistent IP, hash IP, consistent hash IP, persistent IP + port and port range – All single port TCP applications, RADIUS and DNS server support – Composite IP application support |
| Layer 7 Load Balancing |
HTTP/HTTPS, FTP/FTPS, SIP, RTSP and RDP – L7 content switching (QoS network and client port - SSL and SIP session ID - HTTP URL, host name, cookie and any header - hash header, cookie and query) – URL redirect and HTTP request/response rewrite – HTTP request filter |
| Server Persistence |
Source + destination IP, Client IP, SSLID, HTTP header, URL, cookie, application – Individual session control |
| Content Routing & Switching |
One arm, configurable reverse or transparent proxy mode per VIP – Configurable reverse or transparent proxy mode, triangle mode – Nested L7 and L4 policies – Combine L7 and L4 policies |
| Global Server Load Balancing |
Application availability from multiple locations worldwide – DNS DoS protection – Global site/service selection – Proximity and IP persistence – Load balancing between multi-site SSL VPN deployments |
| Link Load Balancing |
Outbound: round robin, weighted round robin, shortest response time, target proximity/dynamic detection – Inbound: round robin, weighted round robin, target proximity/dynamic detection – Integrated DNS |
| ePolicy L7 Application Scripting |
Customize SLB policies and collaborate with SLB methods to realize load balancing among real services – Analyze packet contents of HTTP, simple object access protocol (SOAP), extensible markup language (XML) and diameter protocols – Receive, send, analyze, and discard generic TCP and TCPS packets – Perform pattern matching for text data – Control TCP connections – Monitor and take statistics of traffic |
| eRoute L4 Routing |
Policy-based routing based on port, source/destination IP, UDP protocols, TCP – RIPv1, RIPv2 and OSPF support – Return to sender (RTS)/IP flow persistence – Port forwarding, link aggregation and port redundancy – Transparent to VPN remote access |
| Application, Server & Link Health Checks |
ARP, ICMP, TCP, HTTP/HTTPS, DNS, Radius, RTSP, SIP single port/protocol health checks – Multi-port health checks – Health checks by protocol and content verification – Link health checks based on physical port, ICMP and user-defined L4 – Next gateway health checks, destination path health checks – Ensure availability and performance of applications over WAN links from a single point of management – Scriptable customer-defined composite health checks |
| Clustering |
Up to 32 nodes – Active/active, active/standby – Configuration synchronization – Application-specific VIP health checks – Stateful TCP failover – Fast failover via USB ports – Automatic ISP failover |
| Single System Image |
Create a single VIP (single ADC instance) out of any number of dedicated, multi-tenant or virtual APV appliances – Enable ultimate flexibility in scaling out |
| IPv6 |
Full IPv6 support – DNS64 & NAT64 – Dual Stack Lite – IPv6 to IPv4 and IPv4 to IPv6 NAT and full IPv6 addressing – IPv6 ready gold certified |
| Networking |
Link aggregation, VLAN/MNET, NTP – Static and port-based NAT, advanced NAT for transparent use of multiple WAN links |
| Application Performance |
Dynamic detect – Client connection persistence – Connection multiplexing – TCP buffering – IEEE 802.3ad link aggregation |
| SSL Acceleration (2048 & 4096-bit) |
Hardware SSL processing – SSLv3 and TLSv1 – 4096-bit maximum cipher key size (RSA) – End-to-end security (Server-side SSL communication) – SSL session reuse and timeout control – Cipher strength reduction – Customizable cipher suite order – Customizable SSL error pages – Sharable to multiple SLB services – SSL self- check |
| Compression |
Hardware accelerated – Virtualized compression – Inline HTTP processing – Compresses HTML, XML, Java scripts and CSS – Compresses Microsoft file formats (DOC, XLS, PPT) and PDF |
| Caching |
Virtualized, memory-based cache – HTTP 1.1 compliant, policy-based cache |
| Traffic Shaping |
Guarantees application performance – Rate shaping for setting user-defined rate limits on critical applications – QoS for traffic prioritization – Supports CBQs and borrow and unborrow bandwidth from queues – Advanced ACL (SLB QoS) – Supports QoS filters based on ports and protocols including TCP, UDP and ICMP |
| WebWall Web Application Security |
Hardened OS – Secure access only, access control based on client certificate information and access method – Customer configurable SSL/TLS version, cipher suite and minimum cipher strength – Tamper-proof key and certificate protection – WebWall stateful packet-inspection firewall – Over 1000 ACL rules without performance degradation – Proxy-based firewall – TCP syn-flood protection – Flash and surge event protection – DoS protection – HTTP access method control – URL filtering – HTTP/DNS cache for mitigating DDoS – Web Application Firewall – Deep application data inspection for dealing with attacks such as SQL injection and cross-site scripting – Detects and responds to known application vulnerabilities – Programmable to deal with future threats |
| DDoS Protection (SLB) |
Protocol Attacks: SSL invalid packet, SSL handshake attack, HTTP invalid packet attack – Application Attacks: HTTP slow attack, HTTP flood attack, bandwidth consumption attack – DDoS attack logging |
| Client-Server Certificate Management |
CSR and private key generation – Self-signed certificate support – Import certificate and private key – Import certificate format – Extensive certificate support – Certificate backup and restore – Wildcard certificate support |
| Client Certificate Authentication & Authorization |
Turbo client certificate verification – Root and intermediate CA import – Basic client certificate verification – Certificate chain support – Certificate revocation list (HTTP, FTP, LDAP) – Online certificate status protocol (OCSP, HTTP/HTTPS) – Certificate-based access control – Inside SSL server, two-way certificates |
| Client Certificate Application Integration |
Parse client certificate field information with different language/encoding – Pass individual field/group and field/ customer format to back-end applications – HTTP header, URL and cookie – Integrated with proxy rewrite – Detailed SSL statistics |
| System |
Centralized cluster management – Secure CLI, WebUI and SSH remote management – XML-RPC for integration with 3rd party management and monitoring – SNMP V2/V3 and private MIBs – Syslog (UDP or TCP) – Administrator and operator account management – E-mail, paging and alerting capability – Multiple configuration files and unit configuration synchronization – Online troubleshooting – Realtime monitoring – Role-based administration control |
| eCloud API |
Interface for cloud management systems to control and monitor hardware and virtual APV appliances – Assists interaction between components such as virtual machines in CloudOS environments – Remote management of interaction between components such as virtual machines in CloudOS environments – Remote management of APV appliances – Notification of events on APV appliances – eCloud demo integrated on APV appliance – APV appliances – Notification of events on APV appliances – eCloud demo integrated on APV appliance – Supports integration with OpenStack Load Balancing-as-a-Service (LBaaS) standard Supports integration with OpenStack Load Balancing-as-a-Service (LBaaS) standard |
